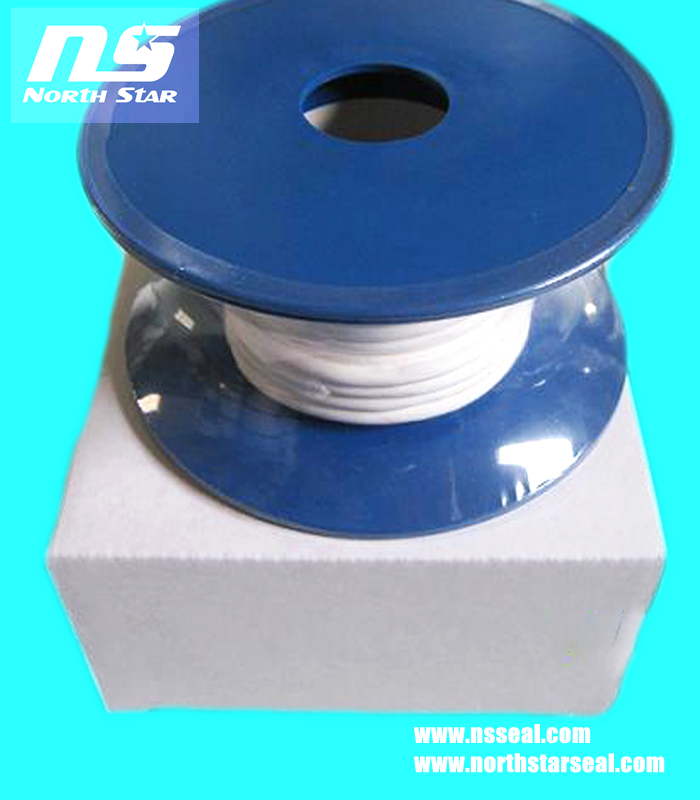

PTFE Expanded Joint tape -1

PTFE Expanded Joints Tape

PTFE expanded tape

Packing:10m/roll,15m/roll, 20m/roll ,1roll/shrink,

                10rolls/carton,12 cartons/pallet

Delivery time :25days

Payment Terms: T/T or L/C

PTFE Expanded Joints Tape

Specifications

Thickness: 1.5mm to 10mm

Width: 3mm to 100mm

Length: 5m to 50m

 Detailed Introduction

Expanded PTFE joint tape is a multi-purpose gasket tape manufactured from 100% expanded PTFE fluorocarbon material, supplied as a continuous low density tape with a self-adhesive backing strip. It is soft and spongy, permitting it to conform easily to all surface irregularities and to compress to a thin ribbon under pressure.

Product Application Fields

Expanded PTFE joint tape is recommended as a gasket tape in steel, glass-lined, PVC and fiberglass pipe flanges, fume ducts, concrete lids, heat exchangers, fiber glass reinforced plastic vessels, pump housing flanges, steam vessel flanges, manhole and manhole covers, ceramic joints, ventilation ducts, hydraulic and pneumatic systems, water supply systems and turbine cases

Technical data

PH Temperature Pressure Density Elongation MatrixTensile

streangth

Creep

Relaxation

Sealablity



RANGE Limits(Mpa) (g/cm3) (%) (MPa) (%) (ml/hr)
0—14 -260–+260 200 0.7-0.8 20 30 51 0.1
