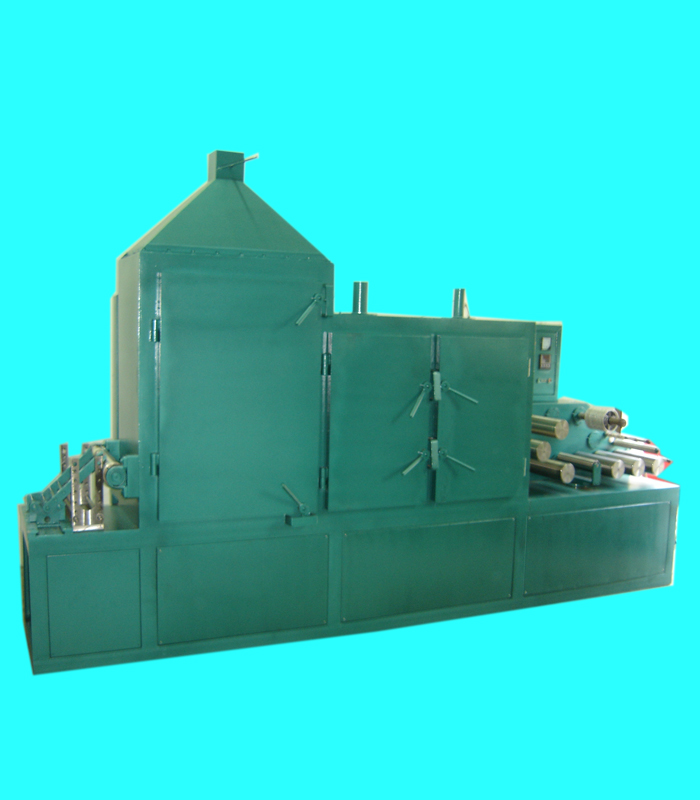

NS-ST312 Stretching Machine ( Hot Cutting )
PTFE Tape Stretching Machine ( Hot Cutting )
Type :NS-ST312
Unit Price : USD 28500/ Set
Packing : wooden case
Payment Term: T/T AND L/C
Delivery time :45days
STRETCHING MACHINE ( Hot Cutting )
Type :NS-ST312
Technical data
| Power Voltage | 380v-50 HZ |
| Stretching motor power | 1.5kw |
| Degrease motor Power | 0.75kw |
| Heating method: | Electro thermal board |
| Degrease area heating power | 8kw |
| Stretching Area heating power | 8kw |
| Mould heating forming area powder | 8kw |
| Max. cutting width | 460mm |
| Slitting speed : | 6-12m/min |
| Max. diameter of release roller | 300mm |
| Hand turn-screw for rollers distance adjust | Yes |
| Stretching Temperature | 260-280℃ |
| Degrease Temperature | 280-300℃ |
| Capacity | 8-12kg /hour |
| Machine Weight | 3500kgs |
| Dimensions | 3400mm x1400mm x2500mm |
