NS-882T
PTFE material dry oven
Type:NS-882T
Unit Price : USD 4165.00
Packing : wooden case
Payment Term: T/T AND L/C
Delivery time :25days
Type: NS-882T

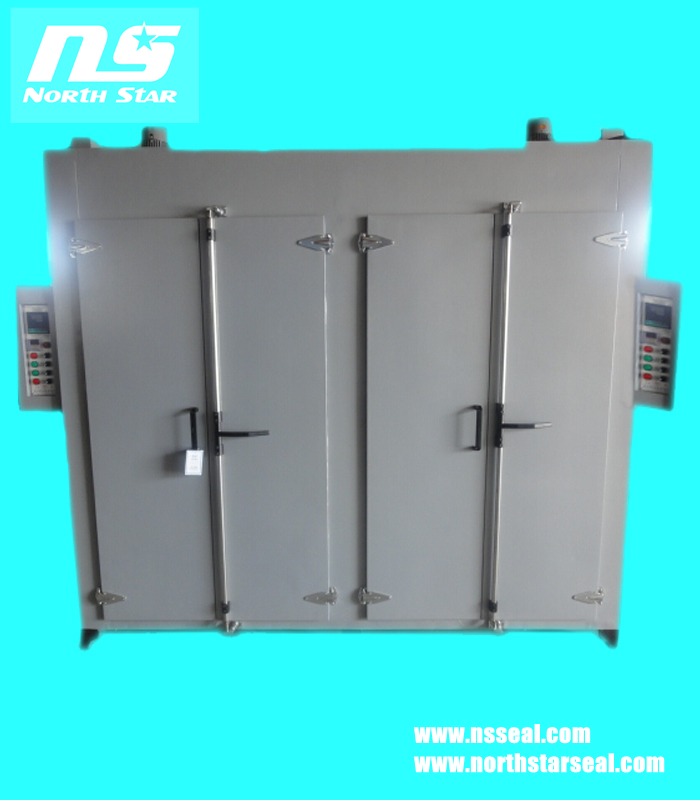

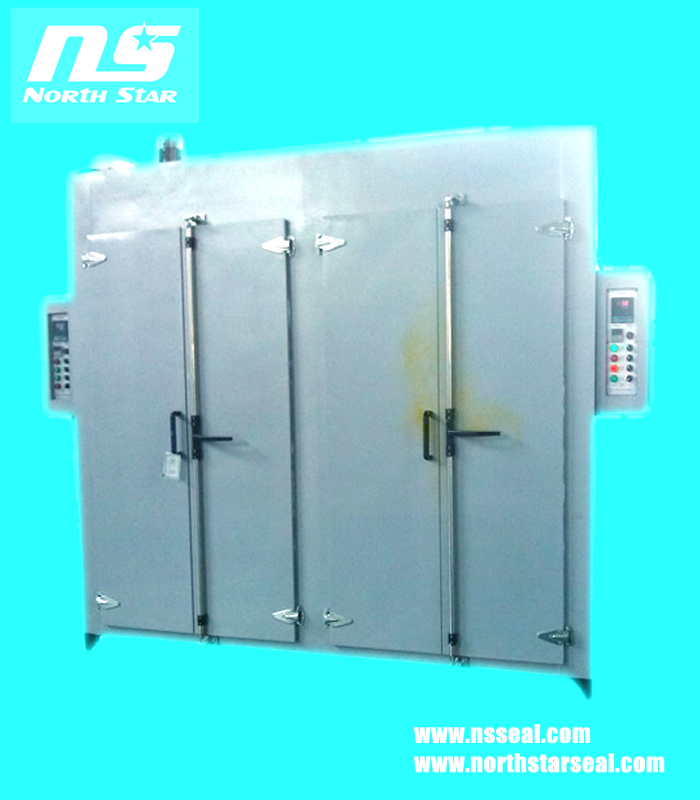

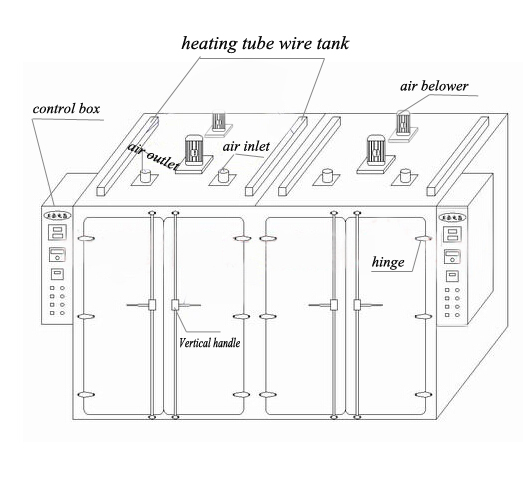

Electric thermostatic drying oven ( Four Door Open )
Technical Date :
| Voltage | 380V～50HZ | Max Temperature Rang | 300℃ | |
| Heating Power | 11KW X2 | Temperature Uniformity | +/- 1 ℃ | |
| Blower Power | 4 x 370W | Temperature control accuracy | +/- 1 ℃ | |
| Working Temperature Rang | 0～300℃ | Used Temperature | 80℃ | |
| Work room Size | 1720*1050*1120 (mm) X2 | Material Temperature rang | 50～60℃ | |
| Dimensions | 2215*3140*1300( mm) | Work room’s frame | 5 Layers | |
| Door quantity : | 4 | Open door mode | Left /right | |
| Air inlet hole sizes | ￠65mm | Air outlet hole size | ￠65mm | |
| Blowing mode ————– Horizontal Circulation wind | ||||
| Heating element | Far –ultrared stainless steel heat tube ( 6pcs ) | |||
| Warming up time | 7—-8 min | |||
| PTFE Material Temperature rang | 50～60℃ | |||
| PTFE Material Dry times | 20—-24 hours | |||
| PTFE material Capacity | 800kgs per one time ( As 10kgs / Bucket 80Buckets ) | |||
