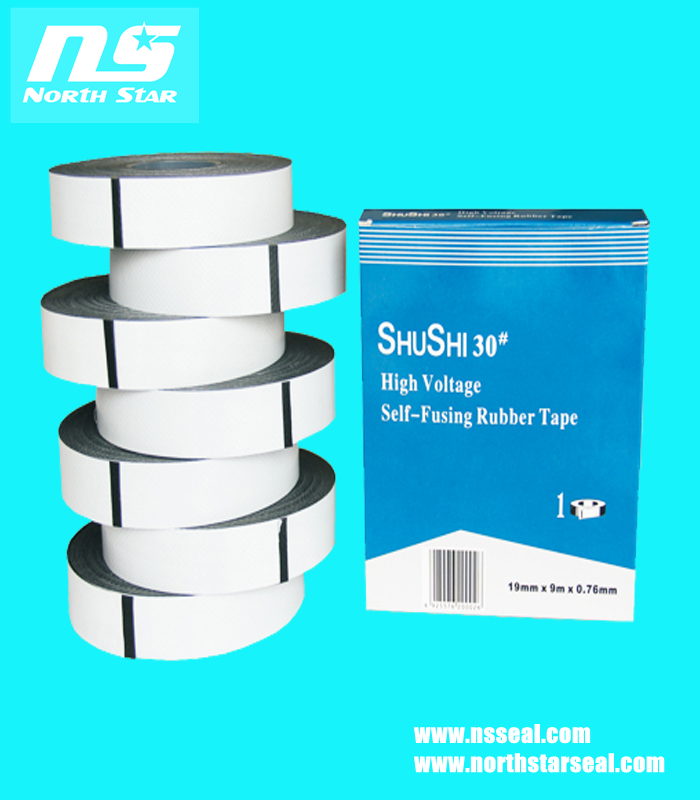

30 # 19mm x9m x0.76mm
Brand : SHUSHI
Packing : 1 roll/color inner box ,60rolls / carton
Inner box size:12cm x12cm x2.1cm
Carton size : 38cm x26cm x23cm
Delivery time :35days
Payment term: T/T or L/C

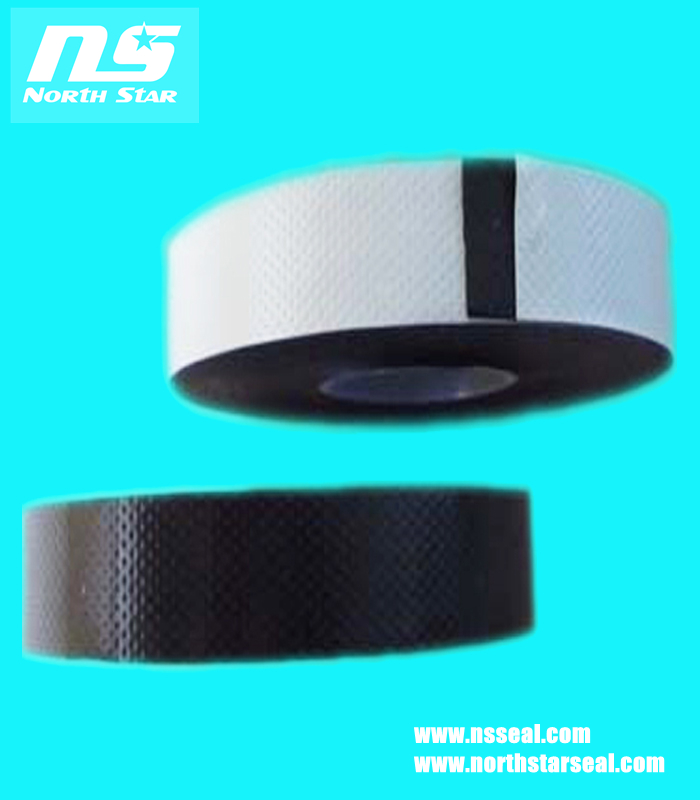

30# EPR Self –fusing Tape
General Specifications :0.76mm x19mm x9m
Applications:
Insulation protection of the end or middle connections of wire and cable 35KV (30#) or below on the
Environment temperature between -10 -80℃, insulative sealing for communication cable connection
pipeline protection , remedy and sealing.
Technical data 30#
| Item No | Thickness
(mm) |
Tensile Strength
(MPA) |
Elongation
( %) |
Disruptive Strength
(KV/mm) |
| 30# | 0.76 | 1.5 | 600 | 15 |
Products Features
Special rubber high tensility and elasticity ,high voltage tolerance .excellent air tightness , good weathering and aging resistance
Usage
Remove separator of the tape , elongated to 200% of its original length enough . Take continuously half overlap circles in three or five layers or reach to the thickness which it is needed , apply another one or two layers PVC electrical tape around the outer layer of EPR self –fusing tape for protection
